Differential Case Materials: Pros and Cons
30th July 2024
When thinking about automotive industry casting, the choice of materials for differential cases is a big decision that impacts the performance, durability, and cost of the vehicle itself.

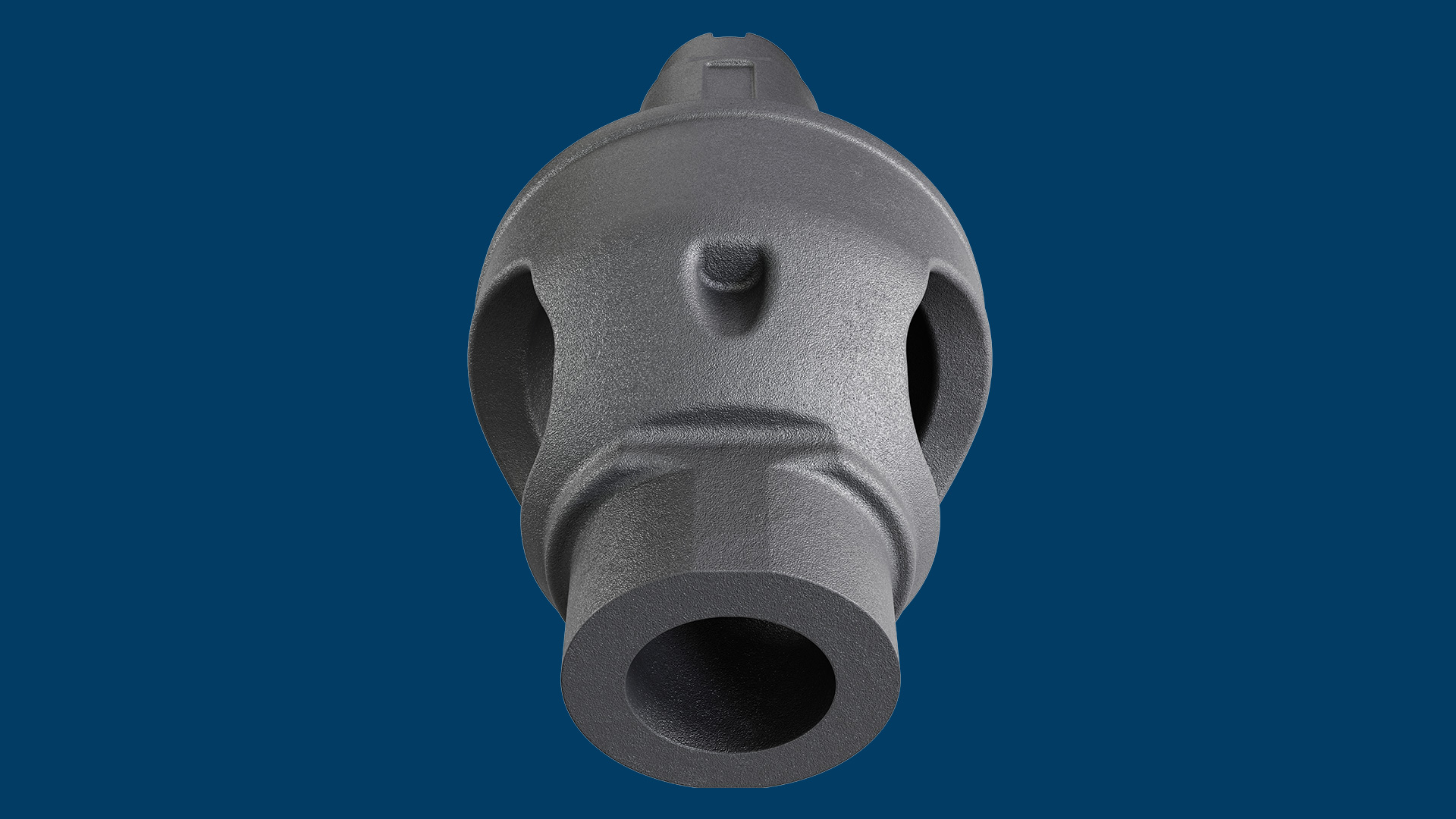

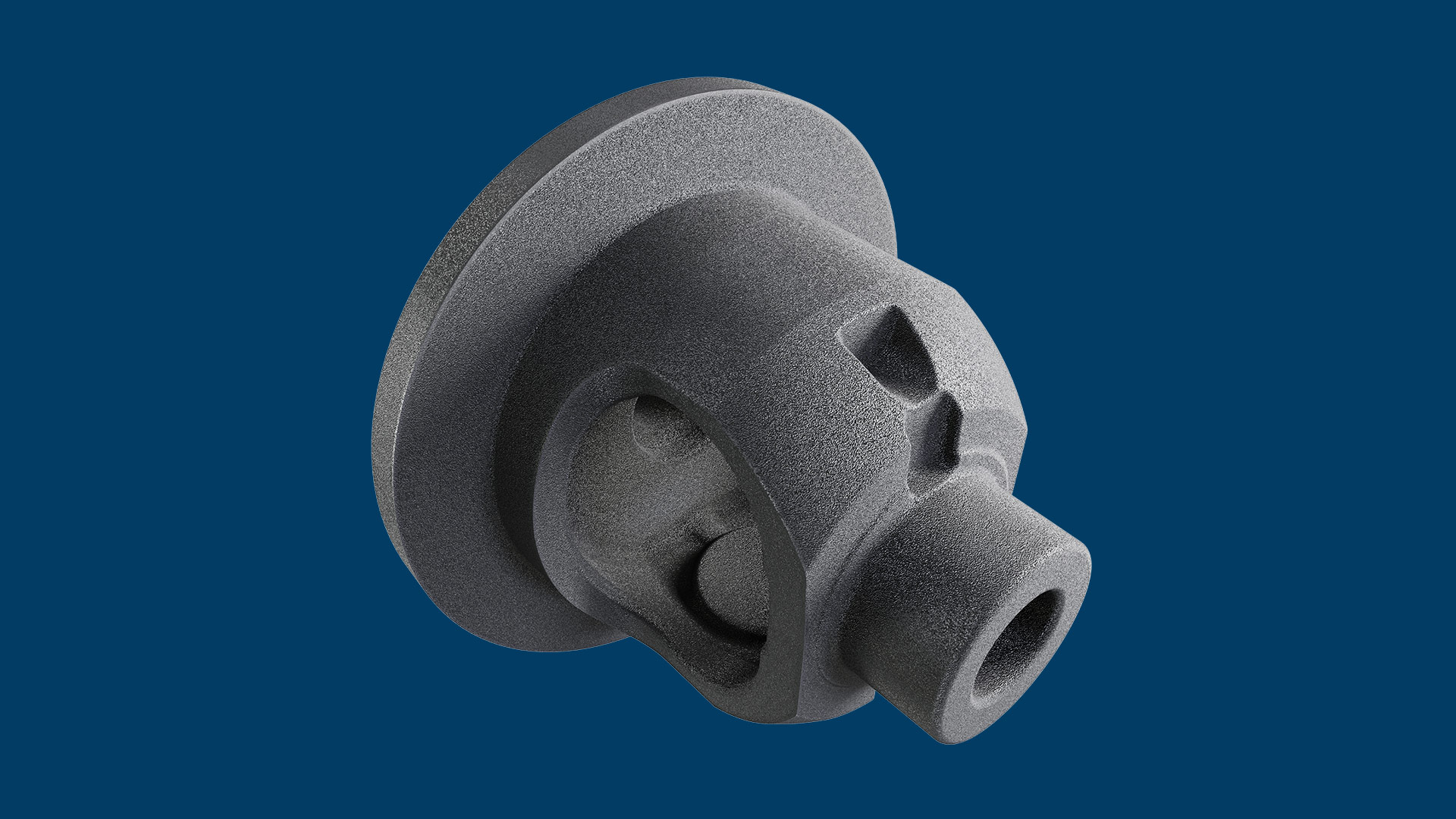

Diff cases are an essential component of the drivetrain, housing the gears that allow wheels to rotate at different speeds, crucial for turning and handling.
Over the years, various materials have been used for manufacturing this part, each with a unique set of advantages and disadvantages. Here we explore the pros and cons of the most commonly used differential case materials.
Cast Iron
Pros:
Strength and Durability: Cast iron is renowned for its excellent strength and durability, making it ideal for heavy-duty applications where robustness is a priority.
Cost-Effective: It is relatively inexpensive compared to some other materials, offering a cost-effective solution for manufacturers.
Good Damping Properties: Cast iron has good vibration damping properties, which help reduce noise and enhance the comfort of the vehicle.
Cons:
Weight: One of the significant drawbacks of cast iron is its weight. It is considerably heavier than alternative materials, which can negatively impact fuel efficiency and overall vehicle performance.
Corrosion: Although durable, cast iron is susceptible to rust and corrosion if not properly treated or maintained.
Machinability: Cast iron can be more challenging to machine than other materials, potentially increasing manufacturing complexity and costs.
Aluminium
Pros:
Lightweight: Aluminium is significantly lighter than cast iron, contributing to better fuel efficiency and handling characteristics. The reduced weight also helps in improving acceleration and braking performance.
Corrosion Resistance: Aluminium naturally forms a protective oxide layer, making it more resistant to corrosion than cast iron.
Good Thermal Conductivity: Aluminium's excellent thermal conductivity helps in better heat dissipation, which can be beneficial for high-performance vehicles.
Cons:
Cost: Aluminium is generally more expensive than cast iron, which can increase the overall manufacturing cost of the differential case.
Strength: While aluminium is strong, it does not match the robustness of cast iron, which may be a limitation for heavy-duty applications.
Machining Challenges: Aluminium can be prone to “galling”, a form of wear caused by adhesion between sliding surfaces, which can complicate the machining process.
Steel
Pros:
High Strength: Steel offers superior strength and toughness, making it suitable for applications where high mechanical stress is expected.
Versatility: Steel is highly versatile and can be alloyed with other elements to enhance its properties, such as improving its resistance to wear and corrosion.
Availability: Steel is widely available and comes in various grades, providing manufacturers with a range of options to meet specific requirements.
Cons:
Weight: Like cast iron, steel is relatively heavy, which can impact vehicle performance and fuel efficiency.
Cost: While not as expensive as aluminium, certain high-strength steel alloys can be costly.
Corrosion: Steel is prone to rust and corrosion if not adequately protected with coatings or treatments.
Composite Materials
Pros:
Lightweight: Composite materials, such as carbon fibre reinforced polymers (CFRP), are extremely lightweight, contributing to significant weight savings and improved vehicle dynamics.
High Strength-to-Weight Ratio: Composites offer an excellent strength-to-weight ratio, providing high strength without the added weight.
Corrosion Resistance: Composite materials are inherently resistant to corrosion, eliminating the need for additional protective coatings.
Cons:
Cost: Composite materials are often the most expensive option due to the complexity of their manufacturing processes.
Manufacturing Complexity: The production and machining of composite materials can be challenging and require specialised equipment and expertise.
Repairability: Damage to composite materials can be more difficult to repair compared to metals, often necessitating complete replacement of the damaged component.
Magnesium
Pros:
Ultra-Lightweight: Magnesium is one of the lightest structural metals available, making it ideal for applications where weight reduction is critical.
Good Strength: Despite its low density, magnesium offers a good strength-to-weight ratio.
Machinability: Magnesium is relatively easy to machine, which can simplify the manufacturing process.
Cons:
Cost: Magnesium is generally more expensive than cast iron and steel, which can increase the overall cost of the differential case.
Corrosion and Flammability: Magnesium is highly reactive and can corrode quickly if not properly protected. It is also flammable, which poses additional challenges in handling and processing.
Limited Availability: Magnesium is less commonly used and available compared to other materials, which can limit its application.
The choice of material for differential cases is a balancing act that involves considering the specific requirements of the application, such as weight, strength, cost, and environmental resistance.
Each material has its pros and cons, and the best choice depends on the priorities of the manufacturer and the intended use of the vehicle. Cast iron offers durability and cost-effectiveness, aluminium provides weight savings and corrosion resistance, steel ensures high strength, composite materials offer an unmatched strength-to-weight ratio, and magnesium delivers ultra-lightweight benefits. By carefully evaluating these factors, manufacturers can make informed decisions to optimise the performance and longevity of their differential cases.
